Velocitas VMI Vacuum Imaging Detector

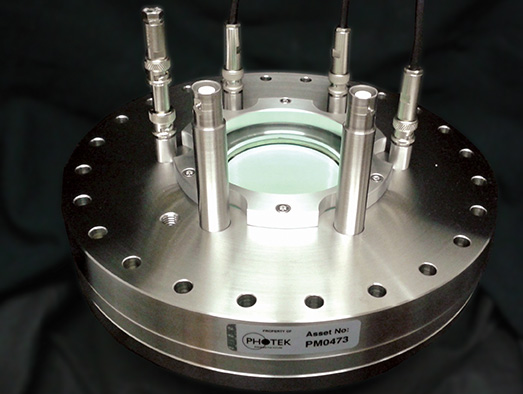

The Velocitas VMI Vacuum Imaging Detector (VID) is an open faced MCP detector, suitable for vacuum imaging experiments. The detector is usually mounted on a vacuum flange, ready to be secured to a vacuum chamber. The VID is designed to detect charged particles, UV photons and neutrons. For VMI applications a typical VID will have two MCPs and a phosphor screen, but the detector is also available with a solid anode for custom anode configurations. The phosphor screen can include a time of flight module, providing a timing response of 3 ns. With a Photek Gate Module, the operation of the MCP can be reduced to less than 10 ns, allowing dc slicing in VMI experiments.
Applications:
Ion imaging
dc slicing
Mass spectrometry
Photoelectron spectroscopy
Synchrotron radiation detection
VUV imaging
Space telescopes
Nuclear physics
We have a long history in the design and manufacture of Vacuum Imaging Detectors, with expertise in phosphor deposition, hardware manufacture and software development. We continually invest in new detection and imaging developments, including investigations of brighter phosphors and 3D imaging capabilities.
Contact us to discuss your needs >
Features:
High resolution
18, 25, 40, 75 and 150 mm active diameter
One, two or three MCPs (for gain from 104 to > 107)
Choice of flange size, with radial or axial feedthroughs
Optional MCP gating to 8 ns

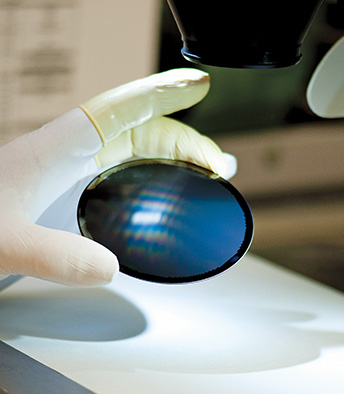

Phosphor screen (P47, P43, …), or electrical output
Optional TOF module, 3 ns FWHM
Resistive sea with re-configurable anode options
HV Power Supply
Custom CAD design
